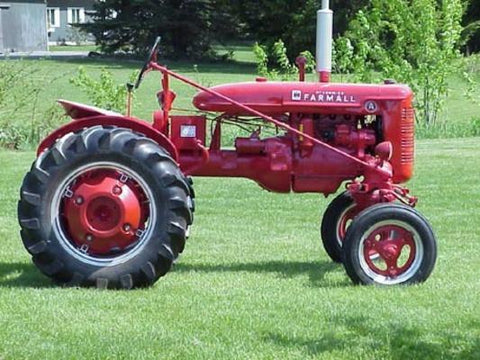

Farmall A AV B BN Tractor Workshop Repair Service Manual
Farmall A Specifications
Model history
Model introduced 1939
Model discontinued 1947
Model status Discontinued
No. produced 128,246 (includes Farmall A-AV, International A)
Preceded by McCormick-Deering Farmall F-14
Superseded by McCormick Farmall Super A
Engine Specification
Engine make International
Engine model C-113
Fuel type distillate
Power hp 16 belt, 15 drawbar
Governed rpm 1400
Displacement cu in /(litre) 113 ci
No. of Cylinders 4
Bore in (mm) 3 in
Stroke in (mm) 4 in
Cooling system water
Naturally aspirated, Turbo or Supercharged NA
Transmission Details
Transmission type sliding gear
Gearbox make International
Forward 4
Reverse 1
Drive 2-WD
General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 4.00-15 4-ply
Rear 9-24 4-ply (8-24 standard)
Tractor Dimensions
Length (inches/metres) 106 in
Width (inches/meters) 56 in
Height (inches/meters) 63 in
Weight (nominal) lb/kg 1780 lb
Turning circle (nominal) inches/meters 18 ft
Wheelbase 71 in
More info
Factories Tractor Works, Chicago, Illinois
Plow rating 1-14"
Nebraska Tests No. 330
Approximate Cost new in (year) $542 (1941), $1295 (1947)
-------------------------------------------------------------------------------------------
Farmall AV Tractor Specs
Model history
Model introduced 1941
Model discontinued 1947
Model status Discontinued
Preceded by New model
Superseded by McCormick Farmall Super AV
Engine Specifications
Engine make International
Engine model C-113
Fuel type gasoline
Power hp 18 belt, 16 drawbar
Governed rpm 1400
Displacement cu in /(litre) 113 ci
No. of Cylinders 4
Bore in (mm) 3 in
Stroke in (mm) 4 in
Cooling system water
Naturally aspirated, Turbo or Supercharged NA
Transmission Details
Transmission type sliding gear
Gearbox make International
Forward 4
Reverse 1
Drive 2-WD
General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 4.00-19 4-ply
Rear 8-36 4-ply
Tractor Dimensions
Length (inches/metres) 115 in
Width (inches/meters) 63 in
Height (inches/meters) 69 in
Weight (nominal) lb/kg 2280 lb
Turning circle (nominal) inches/meters 17.5 ft
Wheelbase 72 in
More info
Factories Tractor Works, Chicago, Illinois
Plow rating 1-16"
Nebraska Tests No. 329 (Farmall A)
Approximate Cost new in (year) $660 (1941)
---------------------------------------------------------------------------------------------
Farmall B Tractor Specs
Model history
Model introduced 1940
Model discontinued 1948
Model status Discontinued
No. produced 93,156 (includes BN)
Preceded by McCormick-Deering Farmall F-14
Superseded by McCormick Farmall C
Engine Specification
Engine make International
Engine model C-113
Fuel type gasoline
Power hp 18 belt, 16 drawbar
Governed rpm 1400
Displacement cu in /(litre) 113 ci
No. of Cylinders 4
Bore in (mm) 3 in
Stroke in (mm) 4 in
Cooling system water
Naturally aspirated, Turbo or Supercharged NA
Transmission Details
Transmission type sliding gear
Gearbox make International
Forward 4
Reverse 1
Drive 2-WD
General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 6.00-12 4-ply single
Rear 8-24 4-ply
Tractor Dimensions
Length (inches/metres) 108 in
Width (inches/meters) 79 in
Height (inches/meters) 65 in
Weight (nominal) lb/kg 1870 lb
Turning circle (nominal) inches/meters 15 ft
Wheelbase 73 in
More info
Factories Tractor Works, Chicago, Illinois
Plow rating 1-16"
Nebraska Tests No. 331
Approximate Cost new in (year) $605 (1940)
---------------------------------------------------------------------------------------------
Farmall BN Tractor Specifications
Model history
Model introduced 1941
Model discontinued 1947
Model status Discontinued
Preceded by New model
Superseded by McCormick Farmall C
Engine Specification
Engine make International
Engine model C-113
Fuel type gasoline
Power hp 18 belt, 16 drawbar
Governed rpm 1400
Displacement cu in /(litre) 113 ci
No. of Cylinders 4
Bore in (mm) 3 in
Stroke in (mm) 4 in
Cooling system water
Naturally aspirated, Turbo or Supercharged NA
Transmission Details
Transmission type sliding gear
Gearbox make International
Forward 4
Reverse 1
Drive 2-WD
General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 4.00-15 4-ply
Rear 8-24 4-ply
Tractor Dimensions
Length (inches/metres) 108 in
Width (inches/meters) 71 in
Height (inches/meters) 65 in
Weight (nominal) lb/kg 1780 lb
Turning circle (nominal) inches/meters 15 ft
Wheelbase 73 in
Other info
Factories Tractor Works, Chicago, Illinois
Plow rating 1-16"
Nebraska Tests No. 331
Model history
Model introduced 1939
Model discontinued 1947
Model status Discontinued
No. produced 128,246 (includes Farmall A-AV, International A)
Preceded by McCormick-Deering Farmall F-14
Superseded by McCormick Farmall Super A
Engine Specification
Engine make International
Engine model C-113
Fuel type distillate
Power hp 16 belt, 15 drawbar
Governed rpm 1400
Displacement cu in /(litre) 113 ci
No. of Cylinders 4
Bore in (mm) 3 in
Stroke in (mm) 4 in
Cooling system water
Naturally aspirated, Turbo or Supercharged NA
Transmission Details
Transmission type sliding gear
Gearbox make International
Forward 4
Reverse 1
Drive 2-WD
General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 4.00-15 4-ply
Rear 9-24 4-ply (8-24 standard)
Tractor Dimensions
Length (inches/metres) 106 in
Width (inches/meters) 56 in
Height (inches/meters) 63 in
Weight (nominal) lb/kg 1780 lb
Turning circle (nominal) inches/meters 18 ft
Wheelbase 71 in
More info
Factories Tractor Works, Chicago, Illinois
Plow rating 1-14"
Nebraska Tests No. 330
Approximate Cost new in (year) $542 (1941), $1295 (1947)
-------------------------------------------------------------------------------------------
Farmall AV Tractor Specs
Model history
Model introduced 1941
Model discontinued 1947
Model status Discontinued
Preceded by New model
Superseded by McCormick Farmall Super AV
Engine Specifications
Engine make International
Engine model C-113
Fuel type gasoline
Power hp 18 belt, 16 drawbar
Governed rpm 1400
Displacement cu in /(litre) 113 ci
No. of Cylinders 4
Bore in (mm) 3 in
Stroke in (mm) 4 in
Cooling system water
Naturally aspirated, Turbo or Supercharged NA
Transmission Details
Transmission type sliding gear
Gearbox make International
Forward 4
Reverse 1
Drive 2-WD
General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 4.00-19 4-ply
Rear 8-36 4-ply
Tractor Dimensions
Length (inches/metres) 115 in
Width (inches/meters) 63 in
Height (inches/meters) 69 in
Weight (nominal) lb/kg 2280 lb
Turning circle (nominal) inches/meters 17.5 ft
Wheelbase 72 in
More info
Factories Tractor Works, Chicago, Illinois
Plow rating 1-16"
Nebraska Tests No. 329 (Farmall A)
Approximate Cost new in (year) $660 (1941)
---------------------------------------------------------------------------------------------
Farmall B Tractor Specs
Model history
Model introduced 1940
Model discontinued 1948
Model status Discontinued
No. produced 93,156 (includes BN)
Preceded by McCormick-Deering Farmall F-14
Superseded by McCormick Farmall C
Engine Specification
Engine make International
Engine model C-113
Fuel type gasoline
Power hp 18 belt, 16 drawbar
Governed rpm 1400
Displacement cu in /(litre) 113 ci
No. of Cylinders 4
Bore in (mm) 3 in
Stroke in (mm) 4 in
Cooling system water
Naturally aspirated, Turbo or Supercharged NA
Transmission Details
Transmission type sliding gear
Gearbox make International
Forward 4
Reverse 1
Drive 2-WD
General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 6.00-12 4-ply single
Rear 8-24 4-ply
Tractor Dimensions
Length (inches/metres) 108 in
Width (inches/meters) 79 in
Height (inches/meters) 65 in
Weight (nominal) lb/kg 1870 lb
Turning circle (nominal) inches/meters 15 ft
Wheelbase 73 in
More info
Factories Tractor Works, Chicago, Illinois
Plow rating 1-16"
Nebraska Tests No. 331
Approximate Cost new in (year) $605 (1940)
---------------------------------------------------------------------------------------------
Farmall BN Tractor Specifications
Model history
Model introduced 1941
Model discontinued 1947
Model status Discontinued
Preceded by New model
Superseded by McCormick Farmall C
Engine Specification
Engine make International
Engine model C-113
Fuel type gasoline
Power hp 18 belt, 16 drawbar
Governed rpm 1400
Displacement cu in /(litre) 113 ci
No. of Cylinders 4
Bore in (mm) 3 in
Stroke in (mm) 4 in
Cooling system water
Naturally aspirated, Turbo or Supercharged NA
Transmission Details
Transmission type sliding gear
Gearbox make International
Forward 4
Reverse 1
Drive 2-WD
General Data
Linkage Category drawbar
Tyre Sizes (std/options)
Front 4.00-15 4-ply
Rear 8-24 4-ply
Tractor Dimensions
Length (inches/metres) 108 in
Width (inches/meters) 71 in
Height (inches/meters) 65 in
Weight (nominal) lb/kg 1780 lb
Turning circle (nominal) inches/meters 15 ft
Wheelbase 73 in
Other info
Factories Tractor Works, Chicago, Illinois
Plow rating 1-16"
Nebraska Tests No. 331
